Name: Industrial Roller Brush For Conveyor Belt Cleaning
Availability: InStock

Industrial Roller Brush For Conveyor Belt Cleaning

Industrial Roller Brush For Conveyor Belt Cleaning is used for keep conveyor belt clean. As an important replacement part for conveyor cleaner, it can be customized to your requirements.

Borstenmaterial :
Nylon/Polypropylene/Wire
Kernmaterial :
Plastic Core
Borstenfarbe :
Black/White/Blue/Green
Funktion :
Conveyor Belt Cleaning
Besonderheit :
V Pattern Bristles

JETZT ANFRAGEN

Produktdetails

A conveyor belt is widely used in modern production lines, and keeping it clean is very important for maintaining production efficiency. The industrial roller brush for conveyor belt cleaning is an effective solution for removing dust, debris, sand, and other materials from conveyor belts.

This product is made of a plastic tube and bristles. The bristle material can be:

Nylon
Polypropylene
Steel Wire

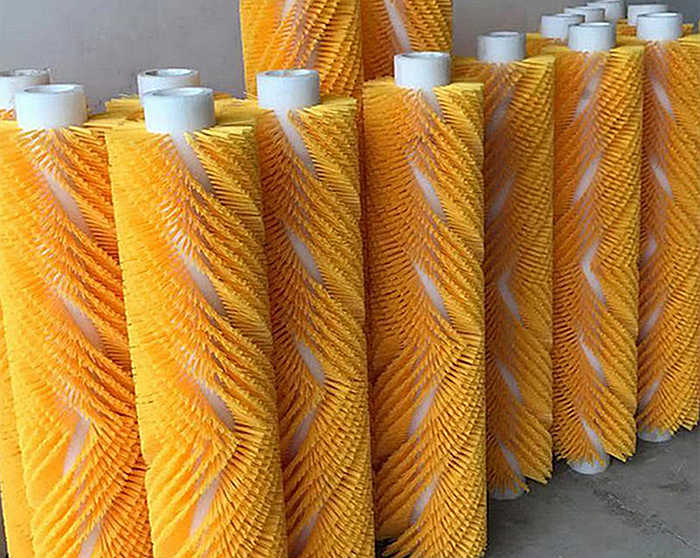

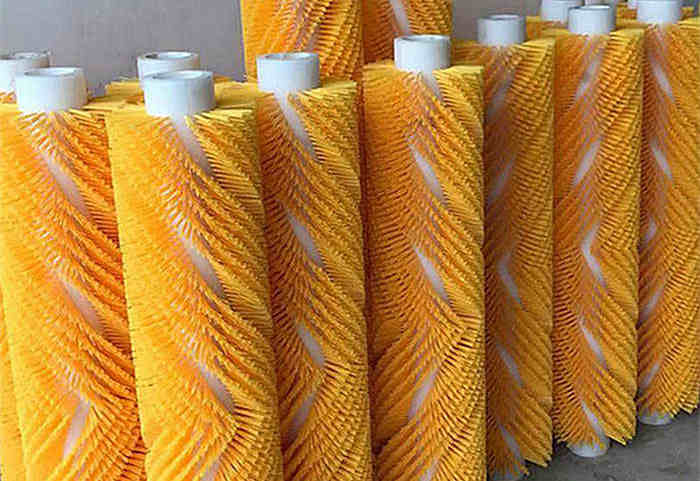

Conveyor Belt Cleaning Cylindrical Brush

Features

1, V-Shaped Bristle Pattern

The bristles are usually arranged in a V pattern. When the rotary brush is working, this design helps move debris from the center of the conveyor belt toward both sides. This prevents cleaned materials from remaining on the belt and improves cleaning efficiency.

2, Wear-Resistant Bristles

The bristles are made from highly wear-resistant materials, making the brush suitable for long-term continuous operation.

3, Strong Bristle Fixing

This Conveyor Belt Cleaner Brush uses a 10 mm tufting depth, which helps secure the bristles firmly and reduces bristle loss during operation.

4, Customizable Length

The Conveyor Cleaning Brush can be customized according to the width of your conveyor belt, ensuring the best cleaning performance.

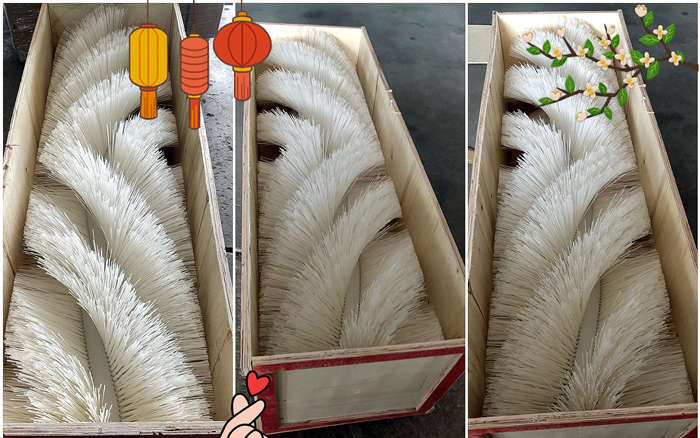

Conveyor Belt Cleaning Roller Brush

Application

For the best cleaning effect, the rotation direction of the roller brush for conveyor belt cleaning is usually opposite to the running direction of the conveyor belt.

This brush is commonly used together with steel shaft, reducer, motor and pedestal to form a complete conveyor belt brush cleaning system.

Typical applications include:

Food processing plants
Mining operations
Sand and aggregate plants
Recycling facilities
Other industries that use conveyor belts

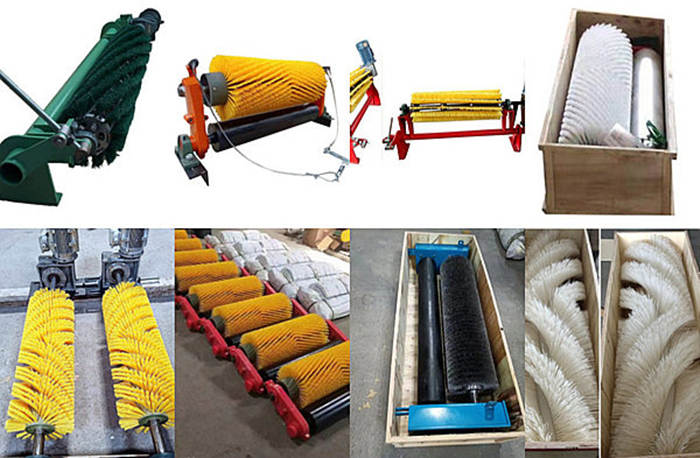

Conveyor Belt Cleaning Machines

How To Choose Your Conveyor Belt Cleaning Roller Brush

Step 1: Determine the Brush Length

The most important factor is the width of your conveyor belt. The conveyor belt width is usually the required brush length (L).

Common brush lengths include:

500 mm
650 mm
800 mm
1000 mm
1200 mm
1400 mm
1600 mm
1800 mm
2000 mm

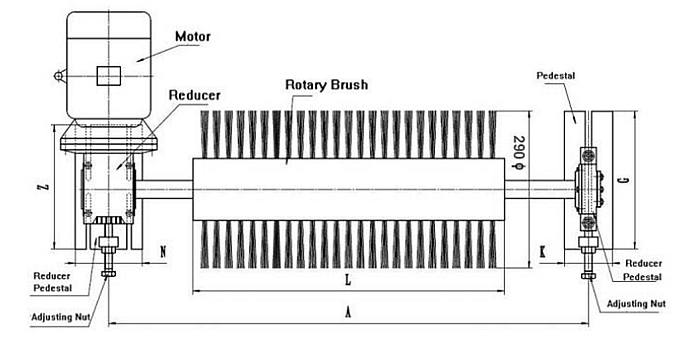

belt brush cleaner

Step 2: Select the Brush Diameter

The most common diameters are:

250 mm
300 mm

A smaller diameter provides higher cleaning intensity but may have a shorter service life.

A larger diameter provides a longer service life, but the cleaning intensity may be slightly lower when the brush is new.

Step 3: Choose the Bristle Material

The bristle material directly affects the cleaning performance.

Steel Wire Bristles
Steel wire provides the highest cleaning strength. It is suitable for conveyor belts carrying sand, mud, or sticky materials that are difficult to remove.
Plastic Bristles
Plastic bristles provide moderate cleaning strength. In most applications, we recommend polypropylene bristles because they are economical and cost-effective.
Food Grade Nylon Bristles
For food processing industries, where products such as fruits, vegetables, bread, and other foods are transported on the belt, food-grade nylon bristles should be used to meet hygiene requirements.
